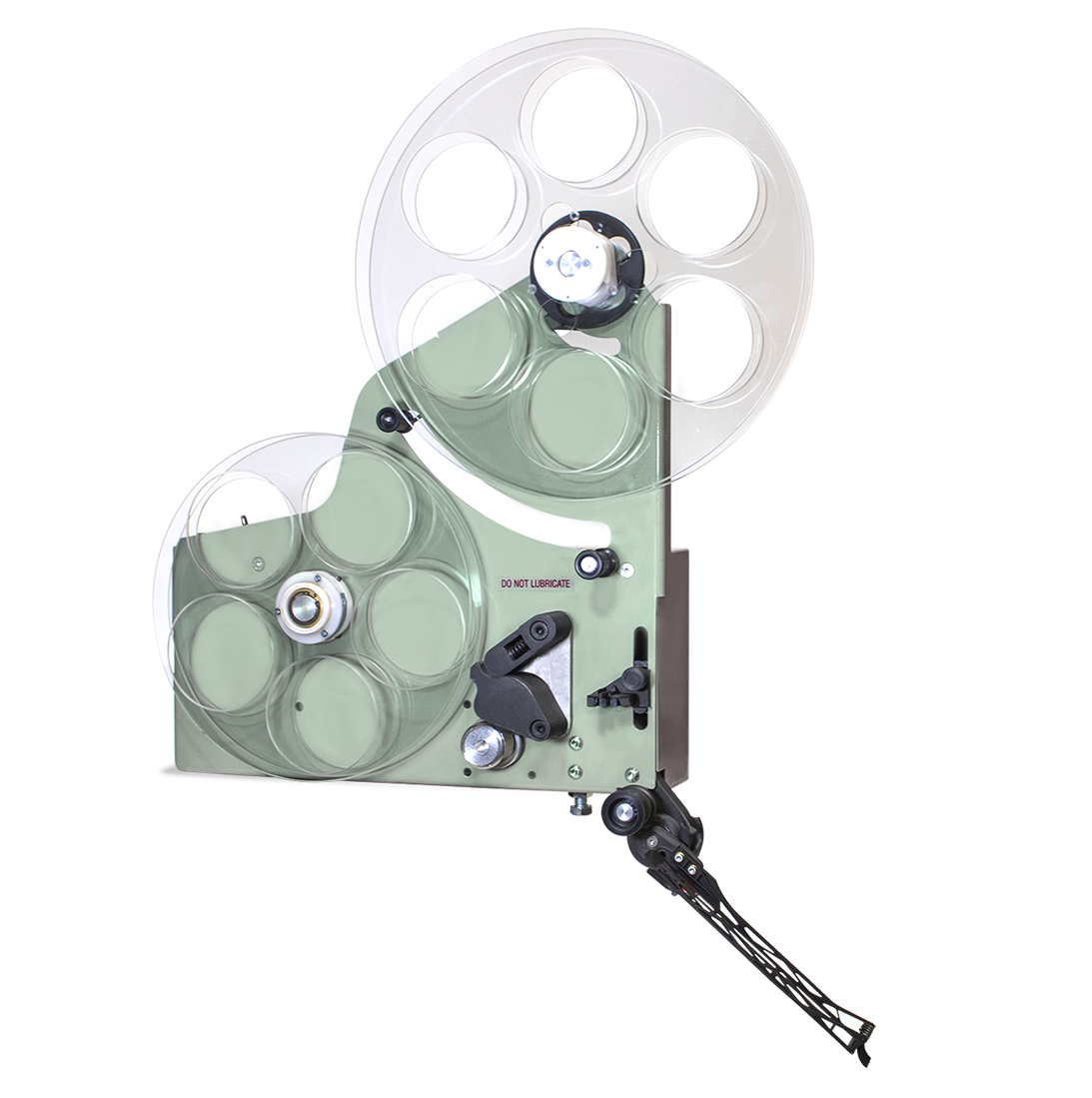

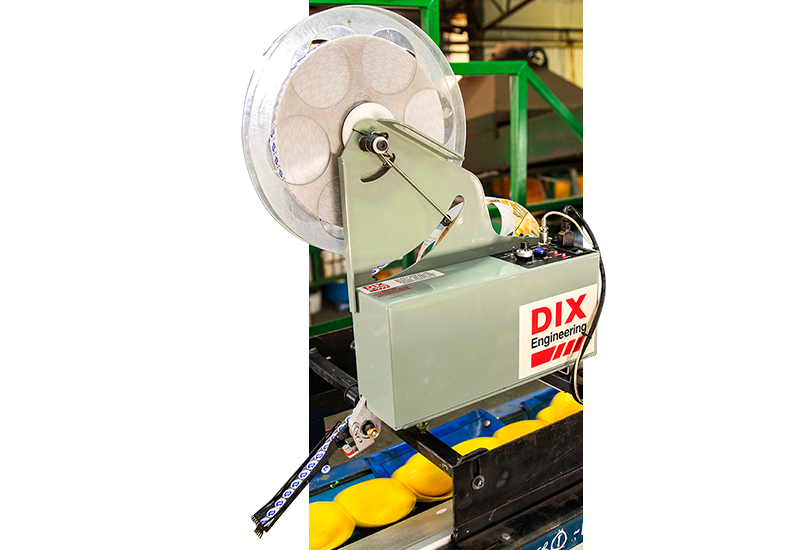

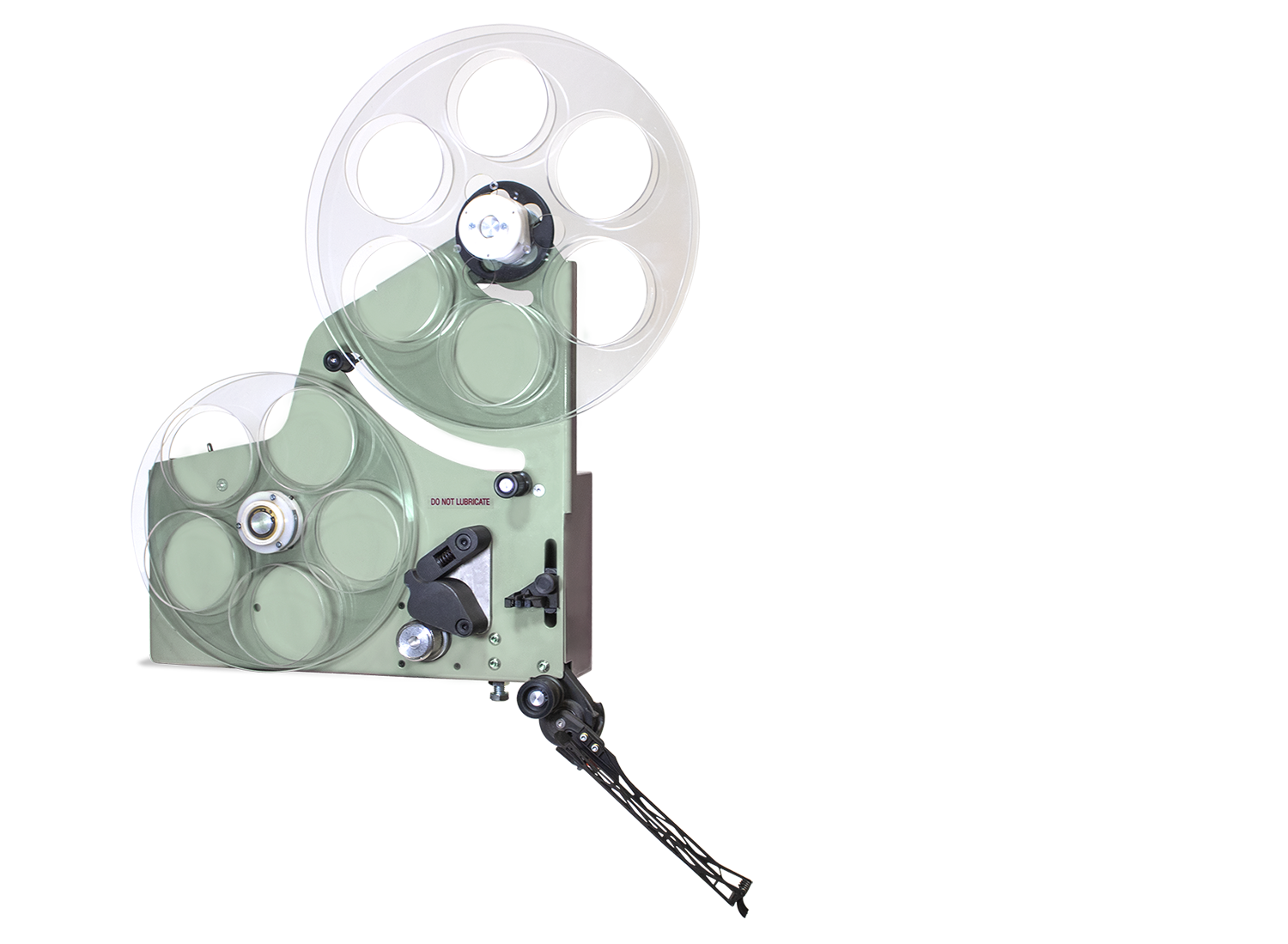

DIX Engineering design and manufacture a range of high-speed automatic labellers, ideal for large distribution and packing centers.
The labellers are self-contained, requiring only a light frame and a single-phase power supply for installation. A quick release mechanism enables easy removal of the labeller for maintenance. In addition, the labeller can be mounted on a variety of graders, singulators and conveyors, and if the product is presented accurately to the labeller, strike rates will exceed 95 per cent.
Our automatic labellers can produce labels of up to 85mm wide tape and label pitches to 150mm and beyond. DIX Engineering cover their labellers with a 12 month warranty from the date of purchase, in the unlikely event of failure or breakdown.
DIX Engineering design and manufacture a range of high-speed automatic labellers, ideal for large distribution and packing centers.
The labellers are self-contained, requiring only a light frame and a single-phase power supply for installation. A quick release mechanism enables easy removal of the labeller for maintenance. In addition, the labeller can be mounted on a variety of graders, singulators and conveyors, and if the product is presented accurately to the labeller, strike rates will exceed 95 per cent.
Our automatic labellers can produce labels of up to 85mm wide tape and label pitches to 150mm and beyond. DIX Engineering cover their labellers with a 12 month warranty from the date of purchase, in the unlikely event of failure or breakdown.
SPECIFICATIONS
Designed and manufactured specifically for fast paced sorting and distribution centers.
TYPICAL APPLICATIONS
• Fruit and vegetables
• Punnets
• Bottles
• Cartons and boxes
SPECIFICATIONS:
Capability: 50 – 900 labels per minute
5 – 90 metres per minute synchronous
Labels: 17 – 25mm wide tape and 10 – 25mm pitch
Option: up to 85mm wide tape and 150mm pitch
Label Rolls: 300mm OD x 50.8mm (2") ID Core
Printing: Stamping or coding attachment available
Power Supply: 240 volt, 50Hz, 1 amp
Weight: 12 kilograms
Accurate: Strike rates of 95% + possible.
• Solid construction and mechanically simple
• Proven design for over 20 years
• Each labeller pivots independently
• Minimises downtime and facilitates change of labels

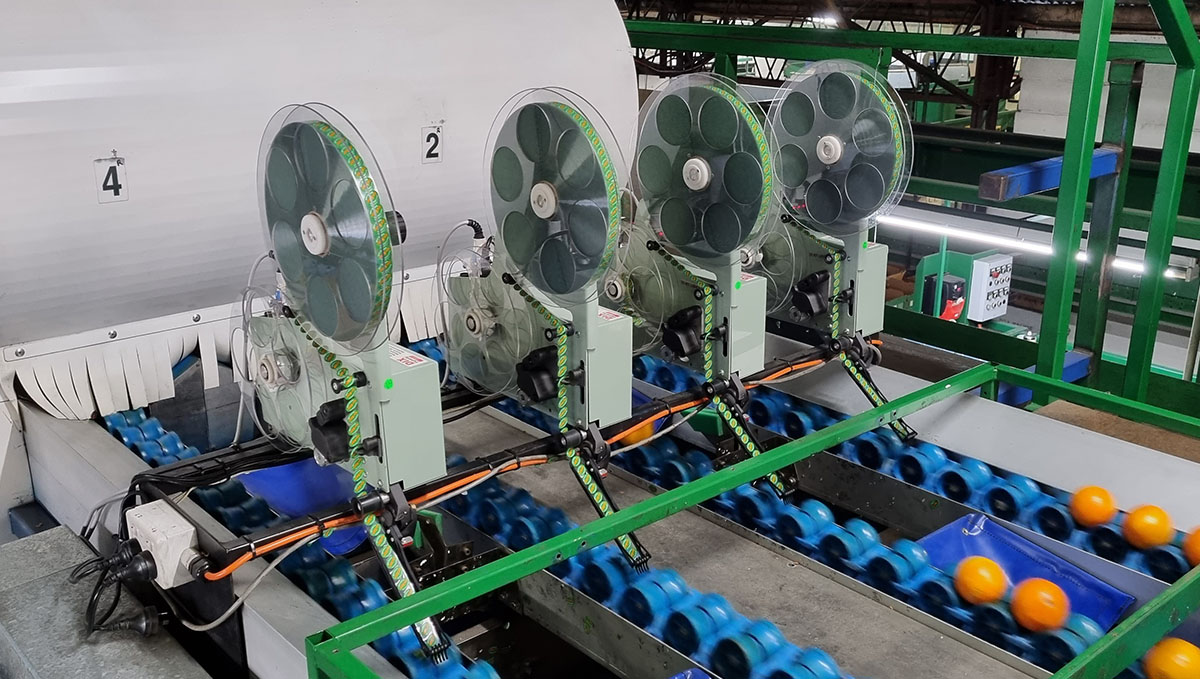

• Labeller can easily be mounted on a variety of graders, singulators and conveyers
• Versatility within the packing shed environment
• Labeller is self-contained, requires a light frame and single phase power supply
• Automatic wake-up activated by arm trigger or computer signal
• Simple connection to a computer grader for selective labelling and monitoring
SPECIFICATIONS
Designed and manufactured specifically for fast paced sorting and distribution centers.
TYPICAL APPLICATIONS
• Fruit and vegetables
• Punnets
• Bottles
• Cartons and boxes
SPECIFICATIONS:
Capability: 50 – 900 labels per minute
5 – 90 metres per minute synchronous
Labels: 17 – 25mm wide tape and 10 – 25mm pitch
Option: up to 85mm wide tape and 150mm pitch
Label Rolls: 300mm OD x 50.8mm (2") ID Core
Printing: Stamping or coding attachment available
Power Supply: 240 volt, 50Hz, 1 amp
Weight: 12 kilograms
Accurate: Strike rates of 95% + possible.
• Solid construction and mechanically simple
• Proven design for over 20 years
• Each labeller pivots independently
• Minimises downtime and facilitates change of labels
• Labeller can easily be mounted on a variety of graders, singulators and conveyers
• Versatility within the packing shed environment
• Labeller is self-contained, requires a light frame and single phase power supply
• Automatic wake-up activated by arm trigger or computer signal
• Simple connection to a computer grader for selective labelling and monitoring
