DIX Engineering's Repair Bands are engineered as the most effective and secure repair solution.
DIX Engineering's stainless steel repair bands use only the highest quality materials to provide you with confidence and reliability.

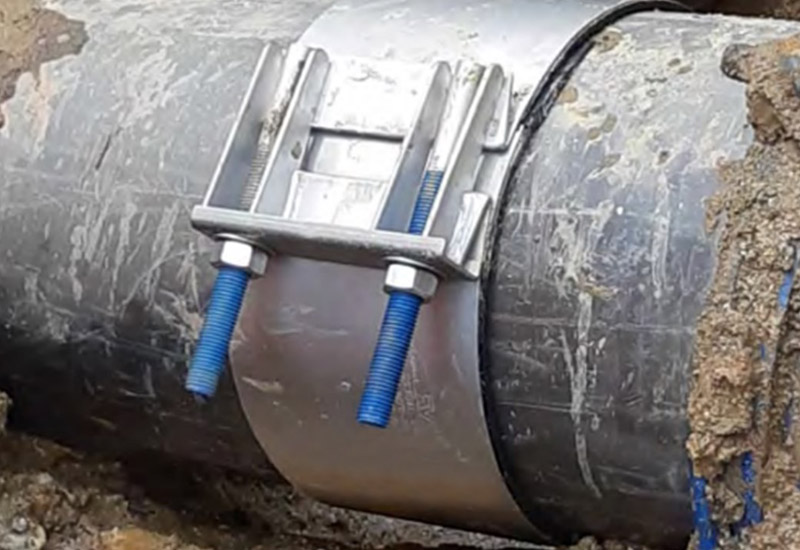

Repair Clamps provide a permanent repair solution for most leaking, cracked or damaged pipes.
They are also an effective means of reinforcing old pipes in critical areas or providing an effective seal for decommissioned service connections.
TYPICAL APPLICATIONS
• Cooling Water Systems
• Water Utilities
• Irrigation Systems
• Mining
DIX Engineering's Repair Bands are engineered as the most effective and secure repair solution.
DIX Engineering's stainless steel repair bands use only the highest quality materials to provide you with confidence and reliability.
Repair Clamps provide a permanent repair solution for most leaking, cracked or damaged pipes.
They are also an effective means of reinforcing old pipes in critical areas or providing an effective seal for decommissioned service connections.
TYPICAL APPLICATIONS
• Cooling Water Systems
• Water Utilities
• Irrigation Systems
• Mining
Expertly Designed and manufactured for the modern enterprise.
FEATURES AND BENEFITS
- • Australian made
• Robust construction
• High quality cross ribbed seal providing reliable and long lasting seal.
• Manufactured to AS1646 “Elastomeric seals for waterworks purposes”
• All threads coated in anti-seize to prevent galling.
• All stainless 316 and fully passivated to protect against corrosion
• Max pressure rating 1600 kpa
• Max temperature 60 degrees Celsius
• Fabrication to suit project specific requirements.
• Manufacture to ISO9001
Designed for strength and stability during repairs.

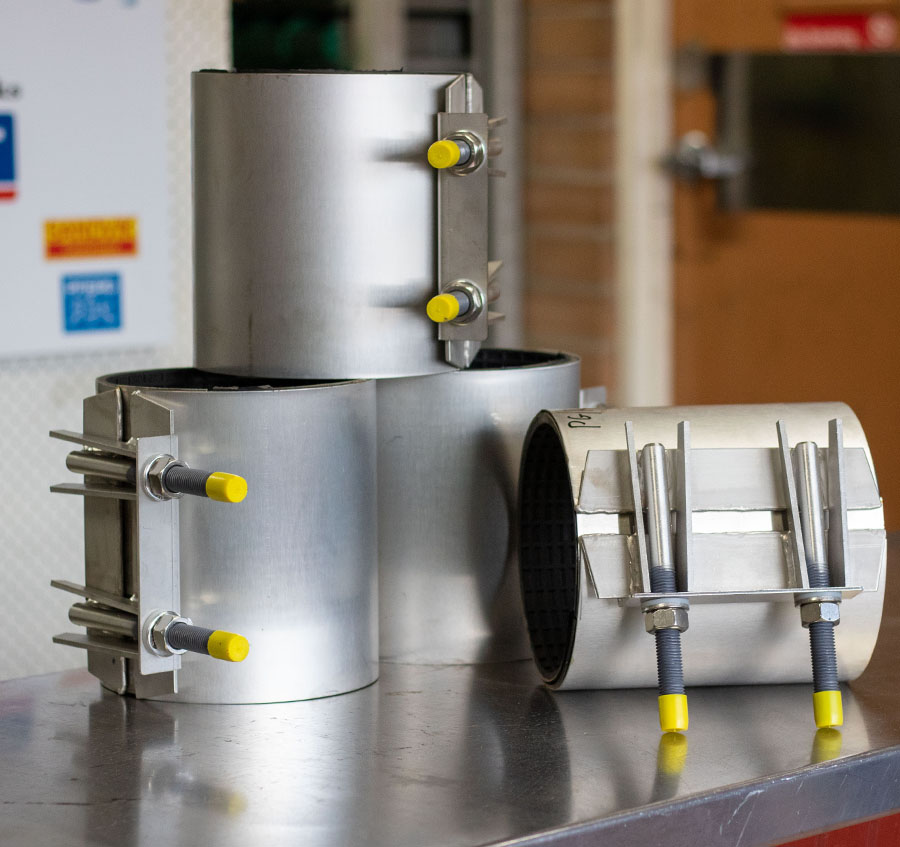

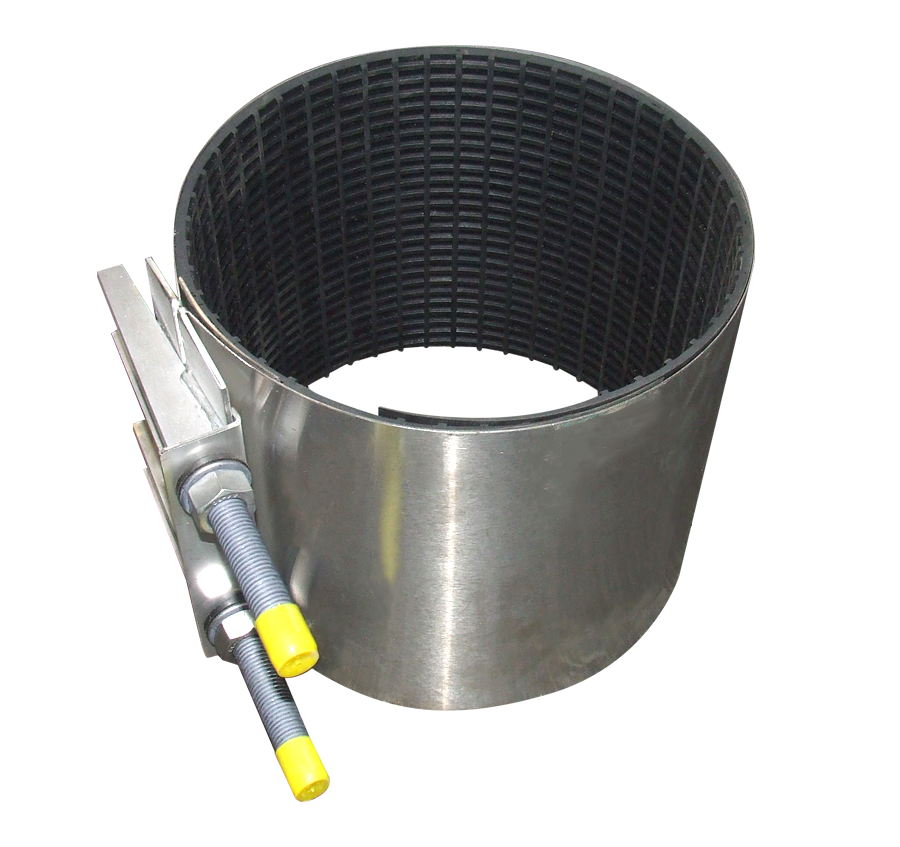

Repair Clamps:
Available to suit pipes 80mm to 450mm. Existing stock can be manufactured to specific requirements up to 1200mm diameter.
Stepped Clamps:
To repair leaking PVC glued joints. Available to suit pipes from 100mm to 300mm.

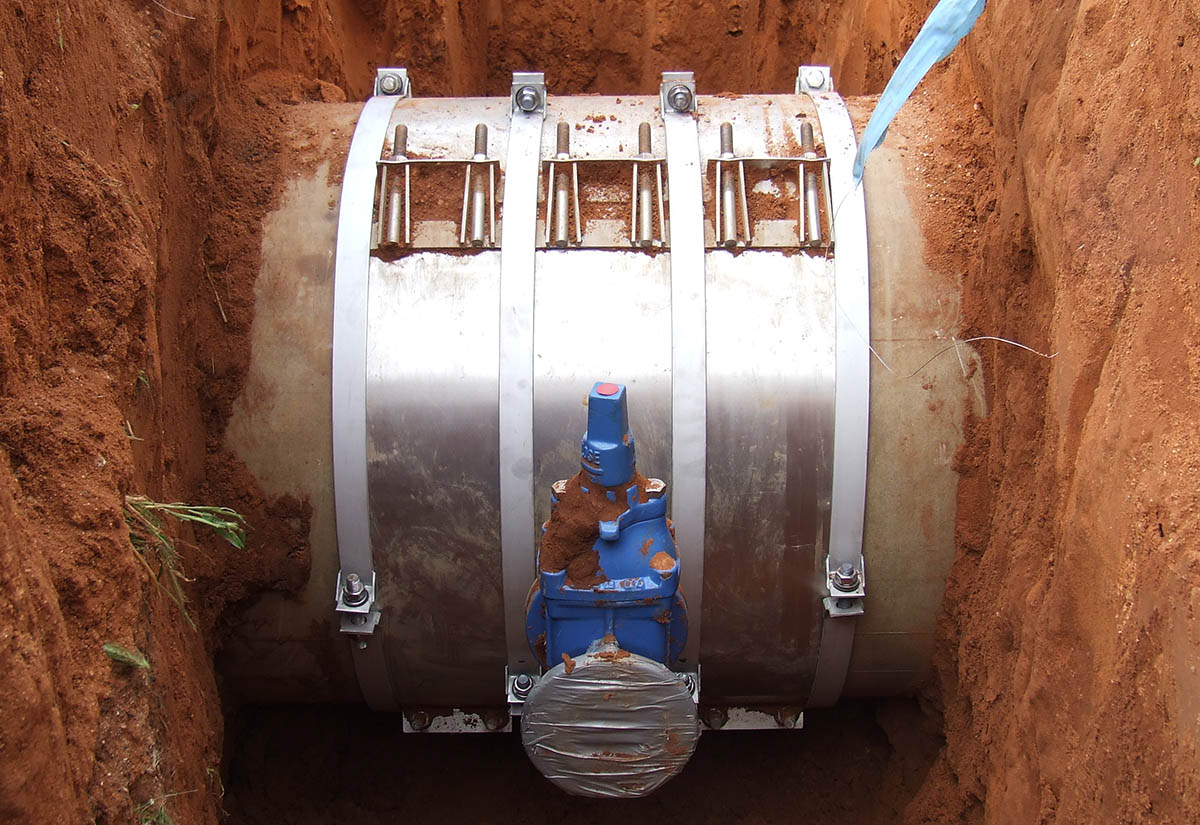

Tapping Bands:
BSP or flanged off-take. FLG options AS2129 TD-TE, AS4087 PN16, Ansi, Din etc.
Expertly Designed and manufactured for the modern enterprise.
FEATURES AND BENEFITS
- • Australian made
• Robust construction
• High quality cross ribbed seal providing reliable and long lasting seal.
• Manufactured to AS1646 “Elastomeric seals for waterworks purposes”
• All threads coated in anti-seize to prevent galling.
• All stainless 316 and fully passivated to protect against corrosion
• Max pressure rating 1600 kpa
• Max temperature 60 degrees Celsius
• Fabrication to suit project specific requirements.
• Manufacture to ISO9001
Designed for strength and stability during repairs.
Repair Clamps:
Available to suit pipes 80mm to 450mm. Existing stock can be manufactured to specific requirements up to 1200mm diameter.
Stepped Clamps:
To repair leaking PVC glued joints. Available to suit pipes from 100mm to 300mm.
Tapping Bands:
BSP or flanged off-take. FLG options AS2129 TD-TE, AS4087 PN16, Ansi, Din etc.
