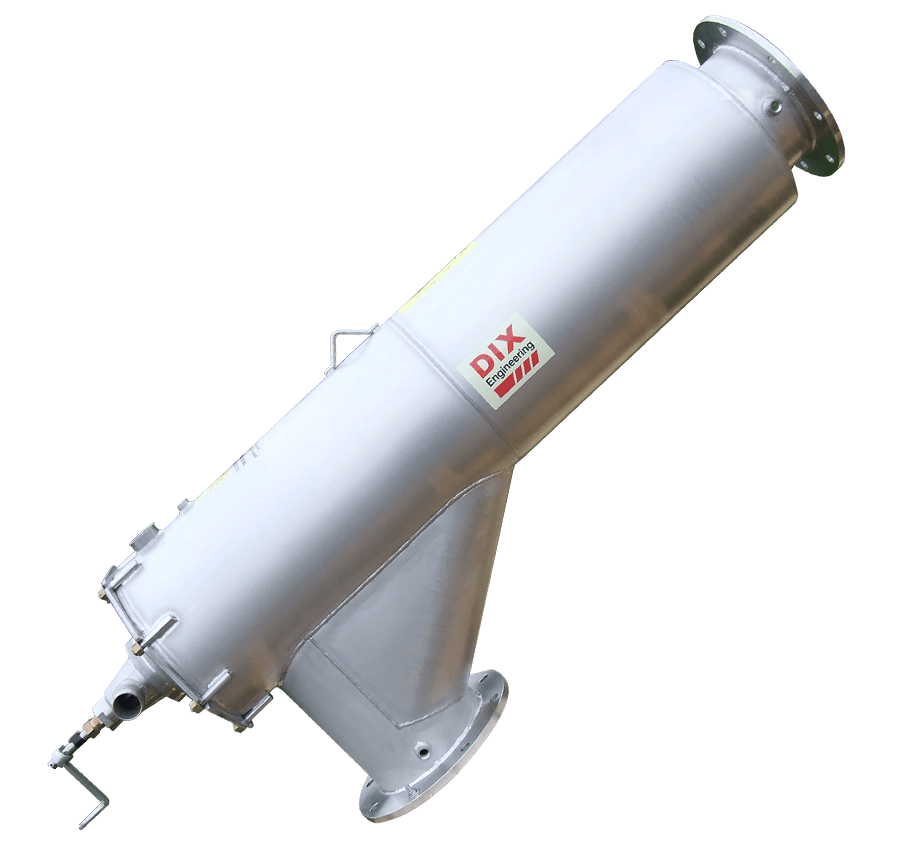

DIX Engineering's Stainless Steel Filters are specifically engineered for Australian conditions.
TYPICAL APPLICATIONS
Farming: Used for screening water supply from rivers, lakes, dams, channels and bores.
Irrigation: Primary filtration for the prevention of blockages in drip systems, sprinkler systems and centre pivots.
Industrial and Power: Filtration of water for heat exchangers, cooling towers and waste water recycling.
Metal Processing Plants: Filtration for water cooling and spray nozzles.
Mining: Cleaning of process and waste water.
FMCG (fast moving consumer goods): ‘Hygienic’ models for use in specialised food process applications, bottling lines, juice lines.
Commercial: Golf course and sporting field irrigation systems.
Expertly designed and manufactured for multiple uses and applications.
FEATURES AND BENEFITS
All welds dip passivated durable and corrosion resistant.
Simple and robust construction reliable trouble-free operation.
Brush vac TM backflushing system provides an effective, shorter cleaning cycle.
Tapered screens on 3,000 to 10,000 models improves flushing efficiency, minimizing wastewater.
Brush and vacuum system is more effective than vacuum only designs copes well with debris that block screens in other designs.
Automatic backflush control operates on both time and pressure differential saves energy and water (flow sensor flushing option available).
Australian made fabrication to suit project specific requirements.
Manufactured to ISO 9001 ensures consistent high quality.
Expertly designed and manufactured for multiple uses and applications.
FEATURES AND BENEFITS
All welds dip passivated durable and corrosion resistant.
Simple and robust construction reliable trouble-free operation.
Brush vac TM backflushing system provides an effective, shorter cleaning cycle.
Tapered screens on 3,000 to 10,000 models improves flushing efficiency, minimizing wastewater.
Brush and vacuum system is more effective than vacuum only designs copes well with debris that block screens in other designs.
Automatic backflush control operates on both time and pressure differential saves energy and water (flow sensor flushing option available).
Australian made fabrication to suit project specific requirements.
Manufactured to ISO 9001 ensures consistent high quality.

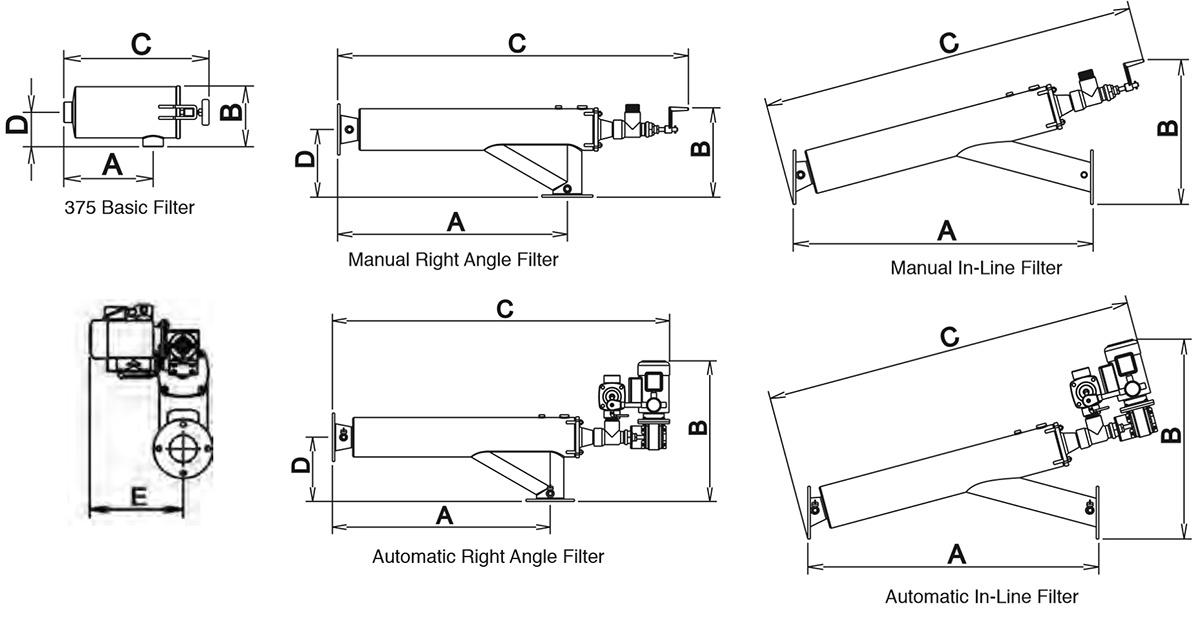

Dimensions
| Model | A | B | C | D | E | ||
| Manual | Automatic | Manual | Automatic | ||||
| 375 Basic | 255 | 180 | – | 430 | – | 100 | – |
| 375 In-Line | 418 | 300 | 355 | 610 | 605 | – | 230 |
| 500 In-Line | 544 | 260 | 370 | 750 | 755 | – | 230 |
| 750 In-Line | 668 | 380 | 510 | 1,000 | 995 | – | 270 |
| 750 Right Angle | 485 | 345 | 415 | 985 | 1,000 | 250 | 270 |
| 1,500 In-Line | 1,175 | 460 | 530 | 1,475 | 1,510 | – | 270 |
| 1,500 Right Angle | 975 | 370 | 440 | 1,460 | 1,490 | 280 | 270 |
| 3,000 In-Line | 1,140 | 640 | 660 | 1,500 | 1,505 | – | 270 |
| 3,000 Right Angle | 830 | 470 | 490 | 1,430 | 1,440 | 330 | 270 |
| 4,500 In-Line (150F) | 1,590 | 730 | 705 | 1,890 | 1,860 | - | 300 |
| 4,500 In-Line (200F) | 1,370 | 755 | 730 | 1,790 | 1,760 | - | 300 |
| 4,500 Right Angle | 1,120 | 540 | 530 | 1,755 | 1,730 | 400 | 300 |
| 7,500 In-Line | 1,740 | 845 | 815 | 2,120 | 2,100 | - | 300 |
| 7,500 Right Angle | 1,405 | 665 | 655 | 2,050 | 2,030 | 520 | 300 |
| 10,000 In-Line | 2,240 | 1,035 | 1,010 | 2,555 | 2,535 | - | 300 |
| 10,000 Right Angle | 1,760 | 845 | 835 | 2,625 | 2,600 | 700 | 300 |
