DIX Engineering Stainless Steel Foot Valves.
Foot valves are installed to pump suction (inlet) pipework to ensure that the pump remains primed and ready to start in applications where it is located above the reservoir level.
If your water is corrosive, use a Dix Engineering stainless steel foot valve to prevent costly repairs or replacement.

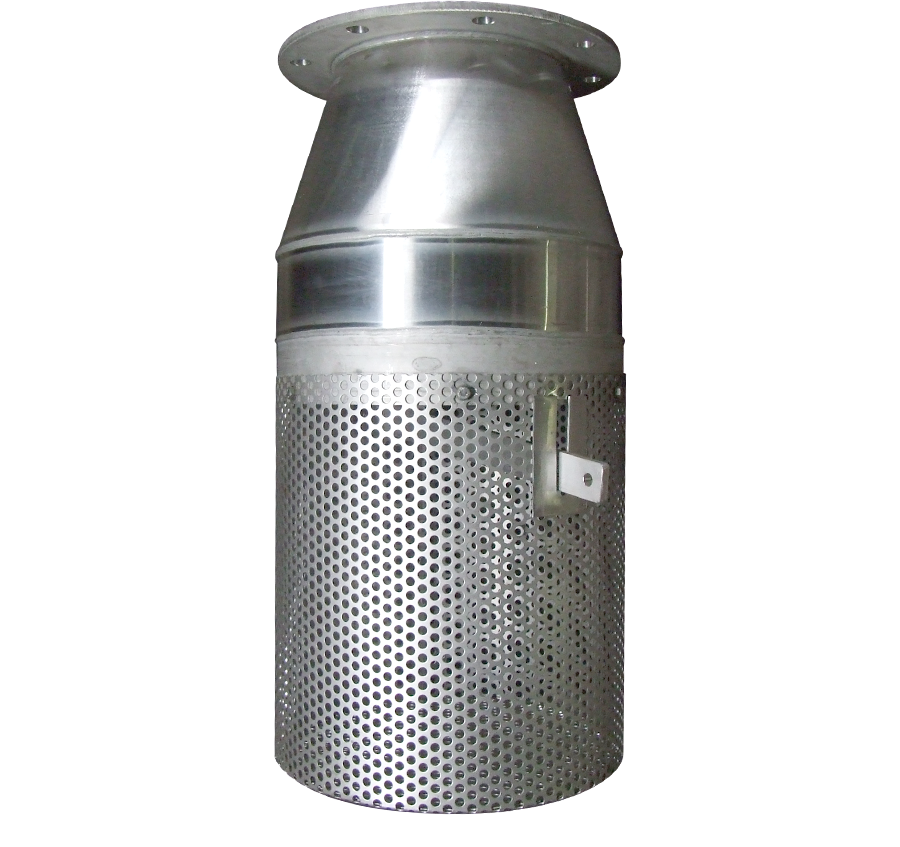

FLAP STYLE
FEATURES AND BENEFITS
- • Simple and robust construction
- • Reliable trouble-free operation
- • Durable and corrosion resistant
- • Extra strength to withstand high back flow pressure
- • Made to withstand high wear and tear
- • Large screen area
- • High flow with low head loss true to pipe size
- • Manufactured to ISO9001
- • Consistent quality workmanship
PRODUCT SPECIFICATIONS
Dix Engineering manufacture stainless steel foot valves from 304 grade steel (316 optional) and are available in an extensive range of configuration, sizes and screen grades, including:
- • Mesh sizes – 4.76mm, 9.53mm
- • Table D flanges (standard other tables available on request)
- • Combination metal and rubber seal surfaces

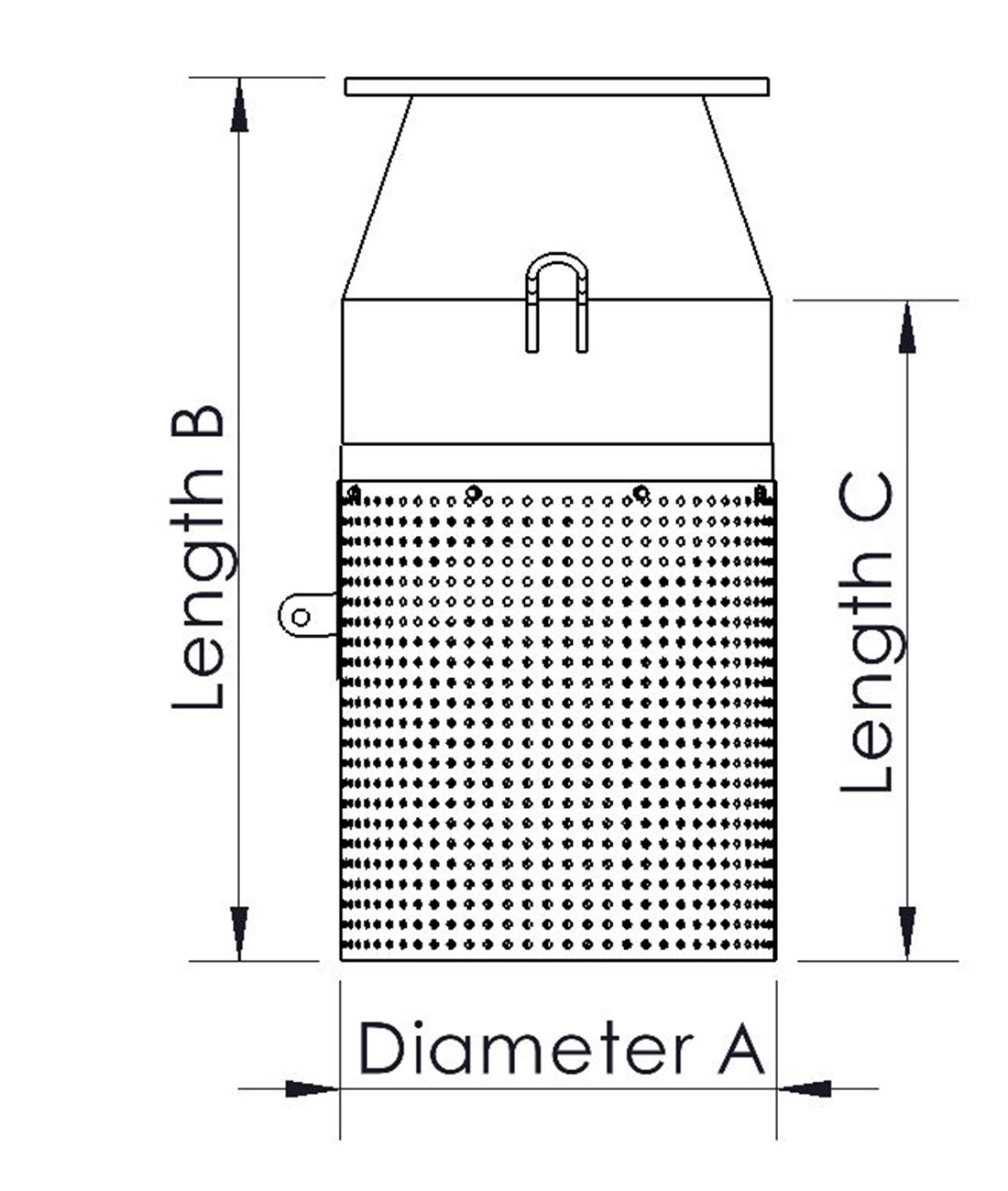

| Flange (mm) | Diameter 'A' | Length 'B' | Length 'C' |
| 100 | 215 | 665 | 450 |
| 150 | 280 | 700 | 450 |
| 200 | 335 | 740 | 450 |
| 250 | 410 | 820 | 450 |
| 300 | 462 | 840 | 450 |
DIX Engineering Stainless Steel Foot Valves.
Foot valves are installed to pump suction (inlet) pipework to ensure that the pump remains primed and ready to start in applications where it is located above the reservoir level.
If your water is corrosive, use a Dix Engineering stainless steel foot valve to prevent costly repairs or replacement.
FLAP STYLE
FEATURES AND BENEFITS
- • Simple and robust construction
- • Reliable trouble-free operation
- • Durable and corrosion resistant
- • Extra strength to withstand high back flow pressure
- • Made to withstand high wear and tear
- • Large screen area
- • High flow with low head loss true to pipe size
- • Manufactured to ISO9001
- • Consistent quality workmanship
PRODUCT SPECIFICATIONS
Dix Engineering manufacture stainless steel foot valves from 304 grade steel (316 optional) and are available in an extensive range of configuration, sizes and screen grades, including:
- • Mesh sizes – 4.76mm, 9.53mm
- • Table D flanges (standard other tables available on request)
- • Combination metal and rubber seal surfaces
| Flange (mm) | Diameter 'A' | Length 'B' | Length 'C' |
| 100 | 215 | 665 | 450 |
| 150 | 280 | 700 | 450 |
| 200 | 335 | 740 | 450 |
| 250 | 410 | 820 | 450 |
| 300 | 462 | 840 | 450 |
Expertly Designed and manufactured for the modern agricultural enterprise.
FEATURES AND BENEFITS

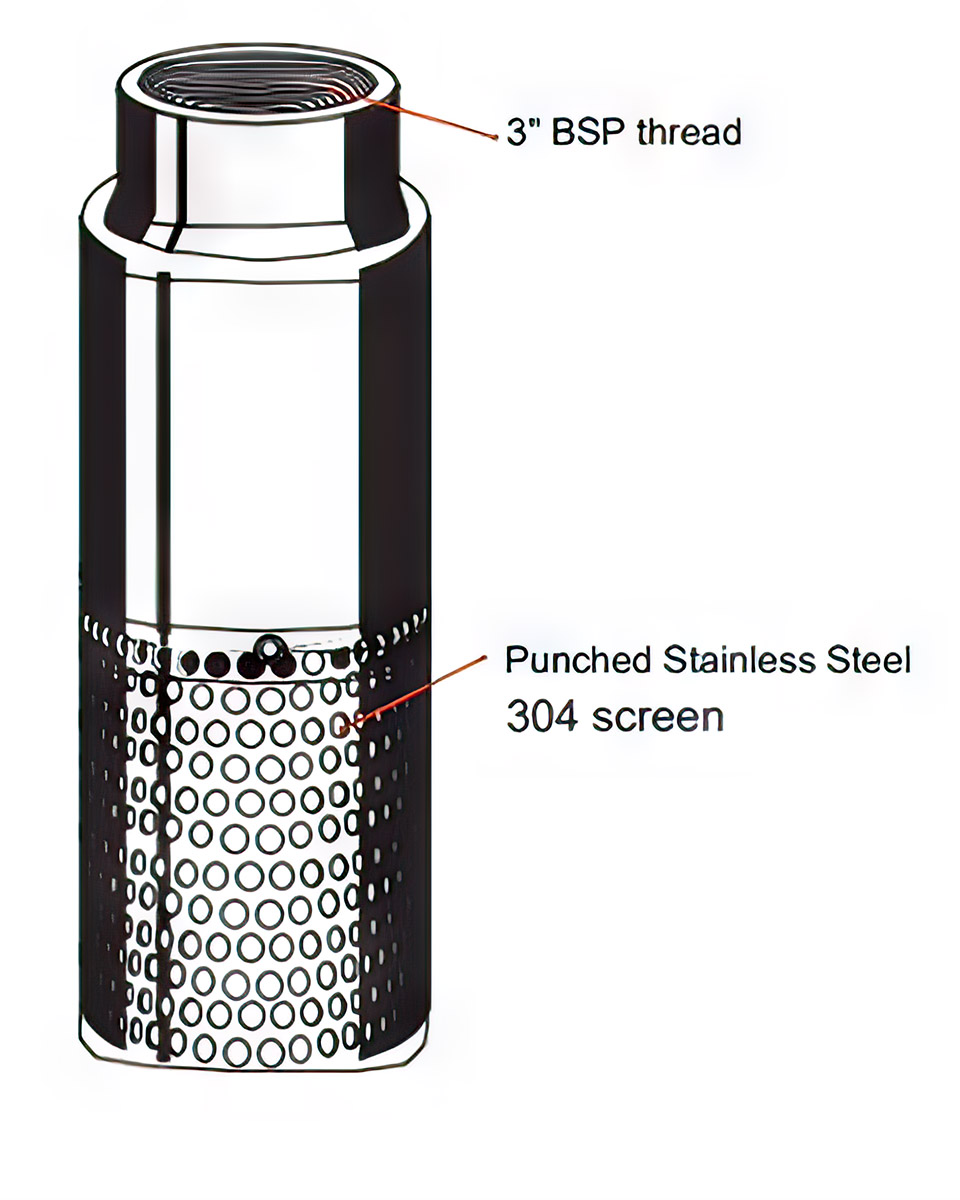

POPPET STYLE
FEATURES AND BENEFITS
- • Simple construction
- • Reliable, trouble free operation
- • Fully serviceable
- • Easily kept in or returned to original specifications
- • Extra heavy-valve and seat
- • Eliminates hammer and can be used as a check valve (vertical)
- • Combination rubber and metal seat
- • Long life and high pressure rating
PRODUCT SPECIFICATIONS
- • Can be manufactured in sizes from 2” BSP to 6” BSP
- • Screen size -3.25mm
- • 304 grade stainless steel (316 optional)
| Model | Length (mm) | Diameter (mm) |
| 2" BSP Female | 275 | 100 |
| 3" BSP Female | 375 | 135 |
| 4" BSP Female | 445 | 160 |
| 6" BSP Female | 610 | 220 |
Expertly Designed and manufactured for the modern agricultural enterprise.
FEATURES AND BENEFITS
POPPET STYLE
FEATURES AND BENEFITS
- • Simple construction
- • Reliable, trouble free operation
- • Fully serviceable
- • Easily kept in or returned to original specifications
- • Extra heavy-valve and seat
- • Eliminates hammer and can be used as a check valve (vertical)
- • Combination rubber and metal seat
- • Long life and high pressure rating
PRODUCT SPECIFICATIONS
- • Can be manufactured in sizes from 2” BSP to 6” BSP
- • Screen size -3.25mm
- • 304 grade stainless steel (316 optional)
| Model | Length (mm) | Diameter (mm) |
| 2" BSP Female | 275 | 100 |
| 3" BSP Female | 375 | 135 |
| 4" BSP Female | 445 | 160 |
| 6" BSP Female | 610 | 220 |
